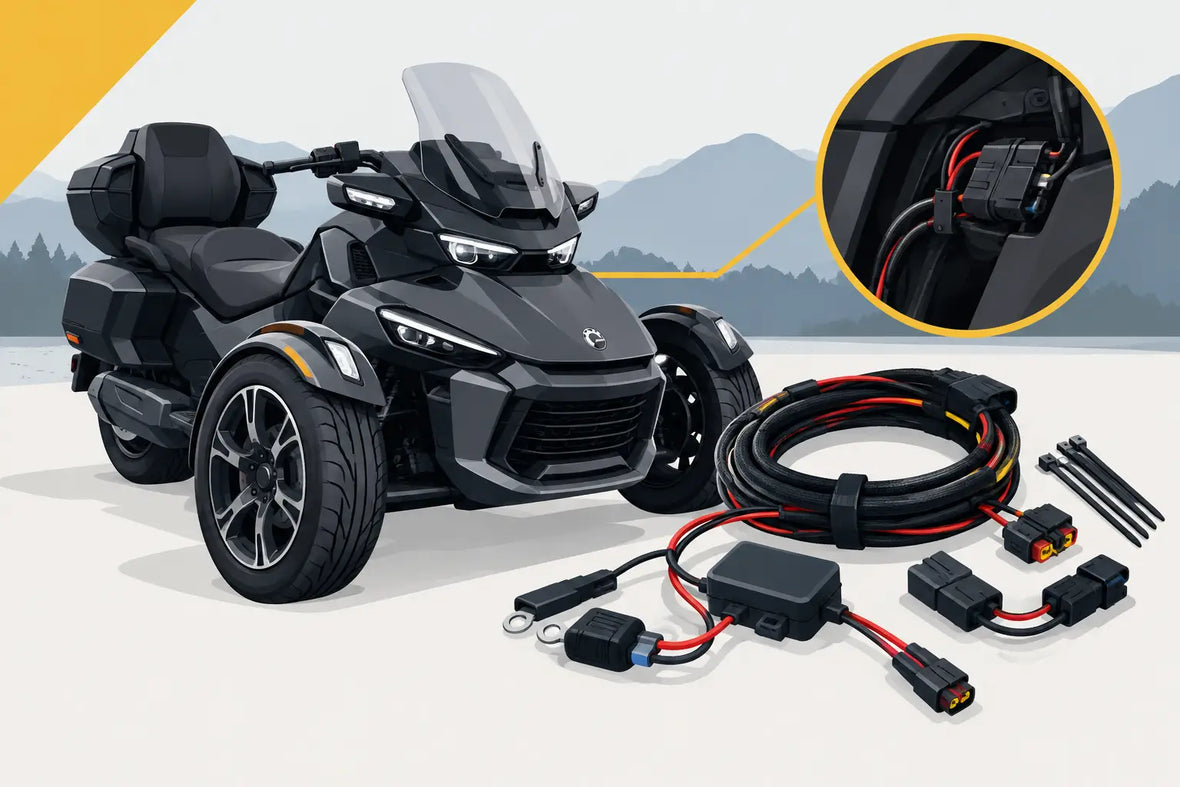

Can-Am Spyder Accessory Wiring Guide Tips

A clean lighting upgrade should look factory-installed when the panels go back on. That starts before the first connector is plugged in. This Can-Am Spyder accessory wiring guide covers the decisions that protect the vehicle’s electrical system while giving your Spyder the added visibility and custom LED presence you want.

The goal is not simply to make an accessory illuminate. It is to build an installation that powers on predictably, follows the intended lighting function, stays protected from moisture and vibration, and remains serviceable months or years later. On a Can-Am Spyder, model year, trim, and accessory location all matter. A harness that belongs on one generation is not automatically right for another.

Start With Exact Spyder Fitment

Before planning power or routing wires, confirm the exact Spyder platform, model year, and trim. Front-end bodywork, connector locations, factory lighting configurations, and available accessory space can differ across the RT, F3, and earlier GS/RS/ST families. An accessory kit engineered for a specific vehicle is usually the right starting point because its harness length, connectors, mounting points, and power requirements have been considered together.

Universal LED products can work, but they create more variables. You may need to identify circuits manually, add connectors, extend leads, fabricate mounting points, and make decisions about switching and protection. That is reasonable for an experienced installer with a clear electrical plan. For most owners, a platform-specific plug-and-play harness reduces the chances of a poor connection, a pinched wire, or an unintended interaction with factory lighting.

Also identify what each accessory is supposed to do. Accent lighting, halos, wheel rings, turn-signal switchbacks, auxiliary running lights, and brake enhancements may all require different trigger signals. A light that should follow the running-light circuit is not wired the same way as a light that changes color or function with the turn signal.

Map the System Before Removing Panels

Lay out the components and read the installation instructions from beginning to end. Identify the power lead, ground lead, input connectors, output connectors, inline fuse holder, controller or module, and any left/right-specific branches. If the kit uses labeled connectors, keep those labels visible until final testing is complete.

Plan where the module will sit before routing any wires. Choose a protected location that does not interfere with steering, suspension movement, heat sources, service access, or panel fitment. A controller stuffed into a tight space may work at first, but constant pressure on the harness or module can lead to failures that are difficult to diagnose later.

Can-Am Spyder Accessory Wiring Guide: Choose Power Correctly

Every added circuit needs a power source sized for its load and protected by a fuse. Low-draw LED accessories often use an accessory harness designed to connect at the battery or a designated power point, with an inline fuse close to the positive connection. That fuse is there to protect the wire if a short develops downstream. Never bypass it, increase its rating to stop nuisance blowing, or substitute an unprotected direct battery lead.

Use the fuse rating supplied with a properly engineered kit. If you are building a custom circuit, calculate the expected current draw and select wire gauge, fuse size, and switching components accordingly. More lighting is not automatically better if the wiring feeding it is undersized.

For higher-draw accessories or multiple combined circuits, a relay-fed fused distribution approach may be appropriate. The relay allows the accessory load to draw directly from a protected battery feed while using a lower-current switched circuit only as a trigger. This helps prevent overloading a factory signal wire. It also allows the accessories to shut down with the ignition when the chosen trigger source is off.

A direct-to-battery connection has a trade-off: the accessory may remain live when the Spyder is parked. That can be useful for a controlled feature, but it can also drain the battery if a controller, remote receiver, or light circuit remains active. If you want automatic key-on/key-off operation, use the correct switched trigger method specified for the accessory and your vehicle.

Grounding Is Not an Afterthought

A weak ground can create flickering, dim output, intermittent controller behavior, or lights that work only when another circuit is active. When a harness includes a battery-negative ring terminal, connect it securely to the battery negative as instructed. For custom grounds, use a clean, solid chassis point appropriate for the circuit and protect the connection from corrosion.

Do not stack a pile of accessory ring terminals onto a connection without considering space, clamping pressure, and serviceability. Keep terminals flat, tight, and clean. If several accessories are being added, a properly planned ground distribution point is cleaner than a crowded battery terminal.

Route for Motion, Heat, and Weather

Spyder bodywork can hide a lot of wiring, which is useful only if the harness is routed with care. Follow existing harness paths where practical, using factory clips or secure fastening points. Keep wires away from exhaust heat, radiator areas, sharp brackets, belt and pulley zones, and steering components.

At the front of the vehicle, turn the handlebars fully left and right before reinstalling panels. Watch every added wire near the steering head and front suspension. A harness that appears to have enough slack when the wheels are straight can pull tight at full lock. Conversely, too much loose wire can rub, snag, or become visible through body openings.

Use abrasion protection where a wire passes near an edge or through an opening. Split loom, protective sleeving, grommets, and quality zip ties all have a place, but do not cinch ties so tightly that they crush the wire insulation. Leave a modest service loop near modules and connectors so panels can be removed without straining the system.

Weather protection matters because Spyders see rain, wash water, road spray, and wide temperature swings. Seat every connector fully until it locks. Keep connector openings pointed downward or positioned where water cannot pool inside. If a connection is intended to be sealed, do not defeat that design by forcing mismatched terminals together.

Connect to Factory Signals With a Purpose

When an LED accessory needs a turn, brake, running-light, or ignition signal, use the designed plug-and-play interface whenever available. It preserves the factory connector, avoids unnecessary wire cutting, and makes future troubleshooting far easier. TricLED vehicle-specific harnesses are built around this approach, helping owners add lighting functions without turning a clean Spyder into a patchwork of taps and splices.

Avoid quick-tap connectors on critical circuits when a purpose-built adapter or sealed connection is available. Quick taps can pierce insulation, loosen with vibration, and allow corrosion into the conductor. A failed tap may not fully stop a circuit, which is why it can produce frustrating intermittent symptoms.

Some accessories use control modules to interpret or combine factory signals. Install these modules in the specified orientation and connect every required input. Do not assume a wire color means the same thing across every model year. Factory wiring colors and connector pin assignments should be verified against the installation documentation for that vehicle.

Test in Stages Before Reassembly

The best time to find a crossed connector or pinched lead is while the body panels are still off. Begin with a visual check: confirm positive and negative leads are correct, connectors are fully seated, wires are clear of moving parts, and the fuse is installed at the specified rating.

Then test the accessory functions one at a time. Verify key-on operation if applicable, running-light mode, left and right turn functions, brake response, hazard operation, and any color-changing or controller features. Check the factory lights as well. An upgrade is only complete when the original lighting still performs correctly.

If a fuse blows, disconnect the accessory and inspect the harness before replacing it. Repeatedly installing new fuses without finding the cause can damage wiring. If a light flickers, start with the battery connections, ground points, connector seating, and areas where the harness may be under tension. Most installation issues come down to power, ground, connector engagement, or routing.

Once every function checks out, reinstall panels carefully. Do not force a panel into place over a harness. If it does not sit naturally, stop and reroute the wire or relocate the module. The finished result should have no exposed wiring where it does not belong, no loose components, and no changes in steering feel or panel alignment.

A well-planned Spyder lighting install does more than add color or output. It gives you dependable function every time you ride, preserves a clean serviceable layout, and lets the details of your machine stand out for the right reasons.
